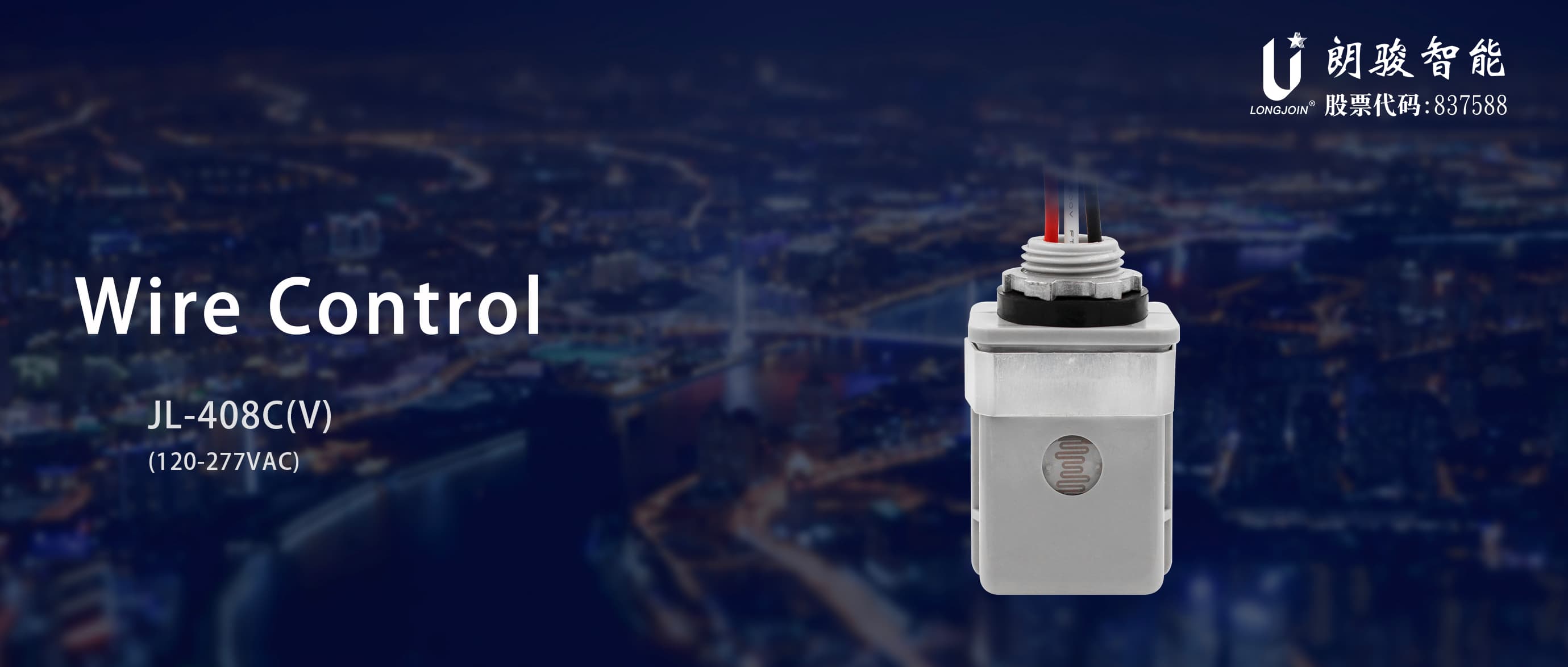

120-277VAC Wire Controller electronic type JL-408C Photocell Switch

Wire Controller electronic type JL-408C, and work voltage 120-277VAC, shielding bar with up-down sliding can to turn on or turn off light controller. and optioanl parts swivel parts, it is can help me to adjust left-right orientation where you want target on the horizontal 180 degrees ranges. Last important key one point, Customer calibration shielding bar abilie to be again revise parameter during your sample order to end-time order bulk goods process.

Number	JL-408C	JL-408CV
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballas
Power Consumption	1.8W@120VA
Operate Levels	0~20Lx Turn-On / 30~80Lx Turn-Of
Fail Mode	Fail off
Lead Wire	AWG #18,105℃ 4" mi

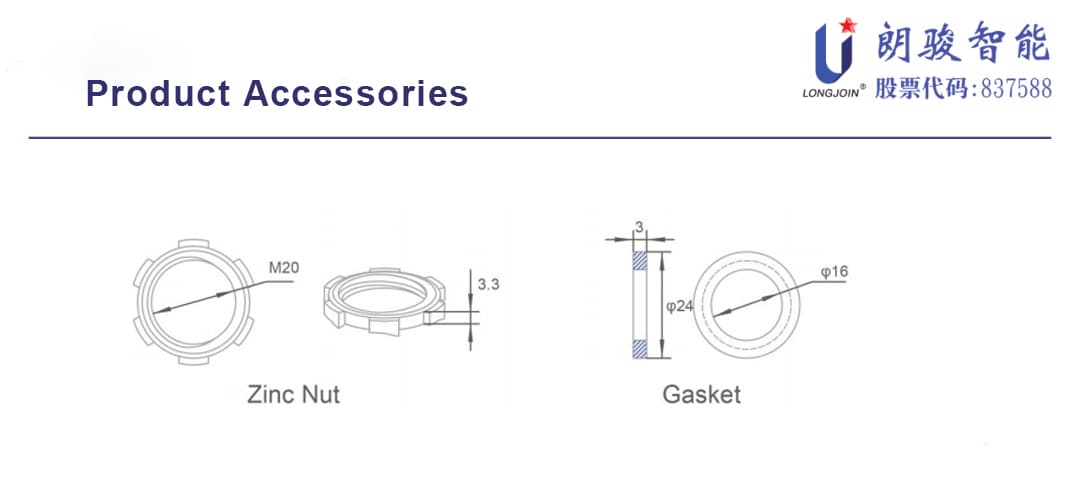

Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.

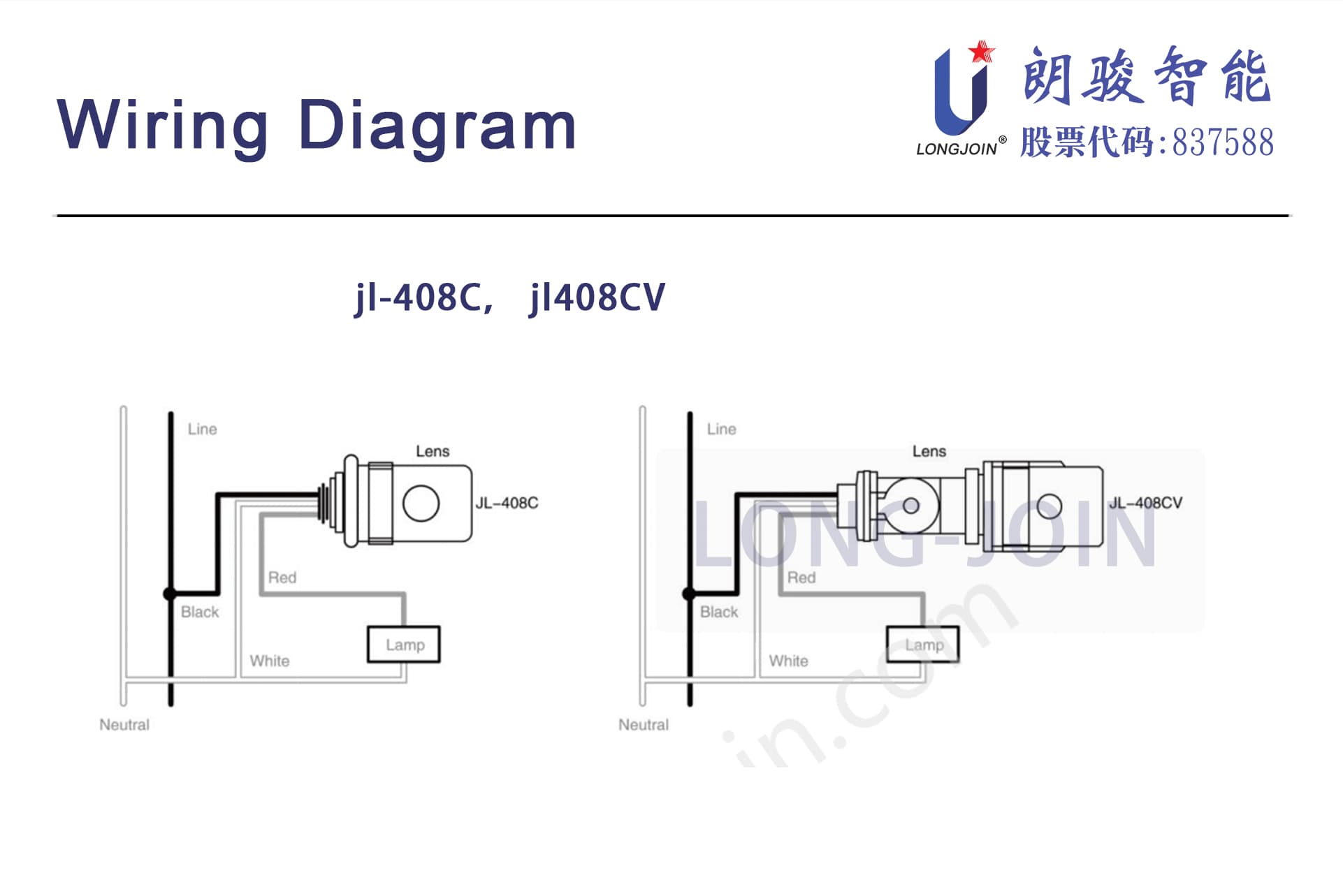

Wire according to the diagram：

Slide the shading strip to have preferred On/Off levels, if necessary.

Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

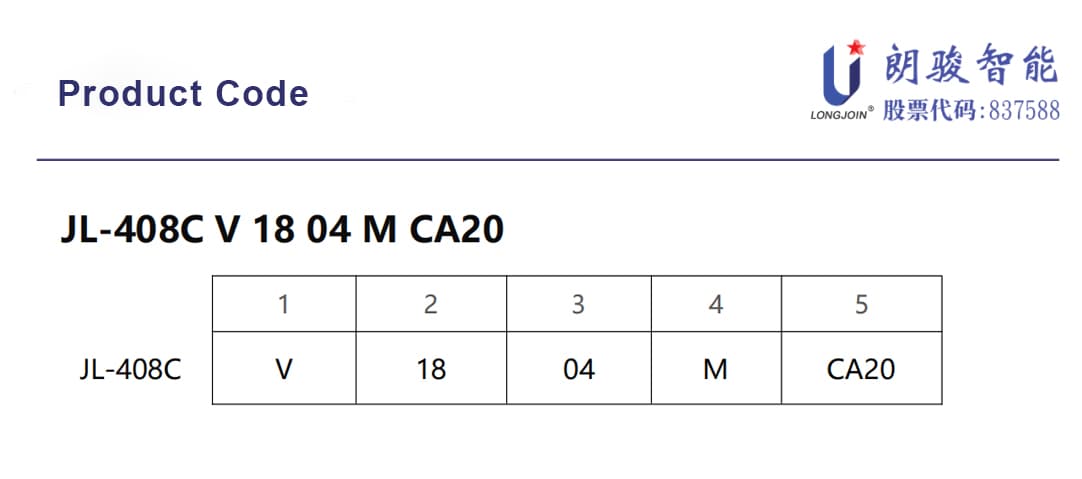

1: V(option) = shank

2: Lead Rating 18=18 AWG, 105ºC rated 18G=18 AWG 150 ºC rated

3: Lead Length XX, in inches (04 min.)
