401 Series Photocell Controller JL-401BR 220-240VAC

Here 401 series control contain different voltage, for instance, 401B(R) 220-240VAC, 401C(R) 120-240VAC. and it is applicable to control the garden lighting,passage lighting and doorway lighting, automatically in accordance with the ambient natural lighting level.

Feature

1-extend wire lengthe sies between this sensing head and wire terminals 10.8 inch;

2-here have a specail finishing approach the way to complete sealing with silicone gasket, here ingress protection IP65;

3-(3-10)seconnds tiem delay.

Number	JL-401B	JL-401BR
Rated Voltage	220-240VAC
Applicable Voltage Range	-
Rated Frequency	50/60Hz
Rated Loading	6A TUNGSTEN、6A Ballast
Power Consumption	5W Max.
Operate Levels	10~20Lx Turn-On / 25~35Lx Turn-Off
Fail Mode	Fail-Off

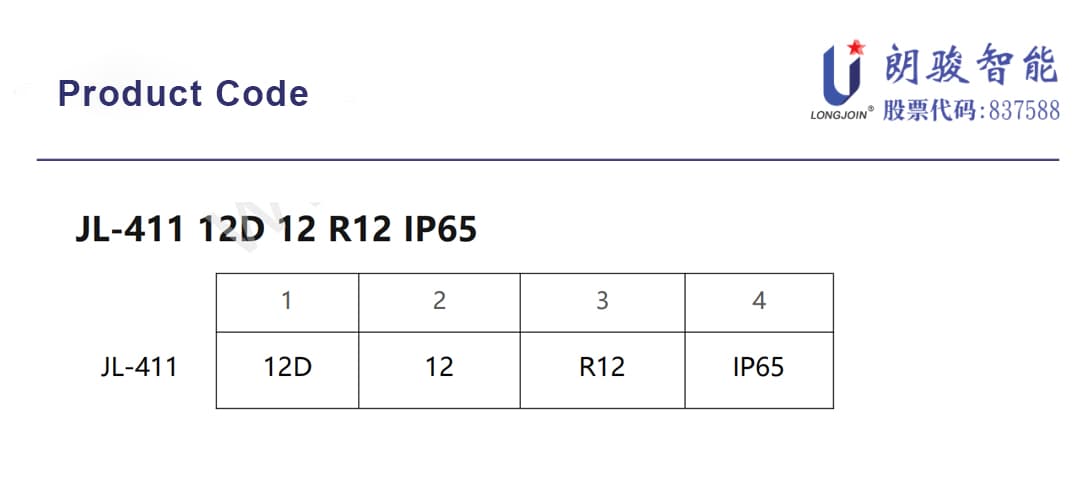

1: lead length

12=10.8″

2: Sensor Position

R=sensor separated

Null=sensor on body

12=12″sensor lead length
