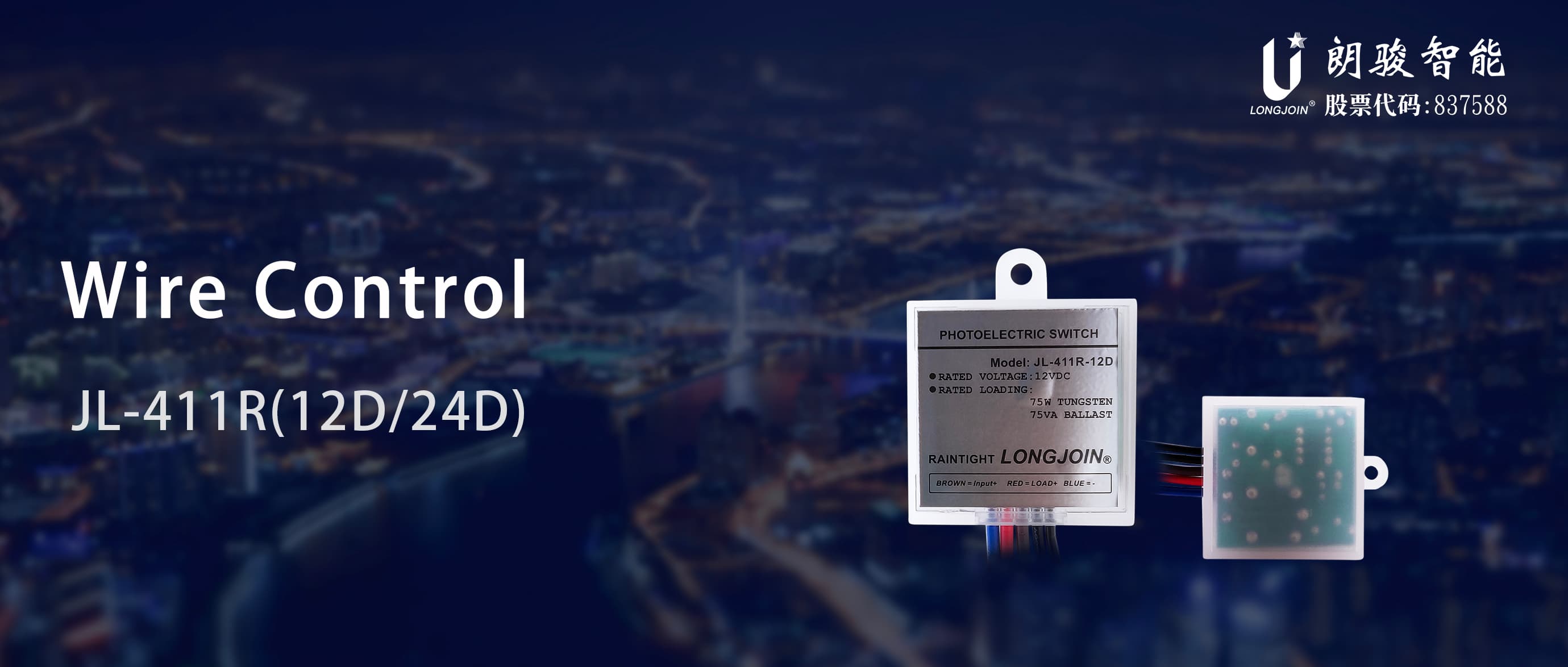

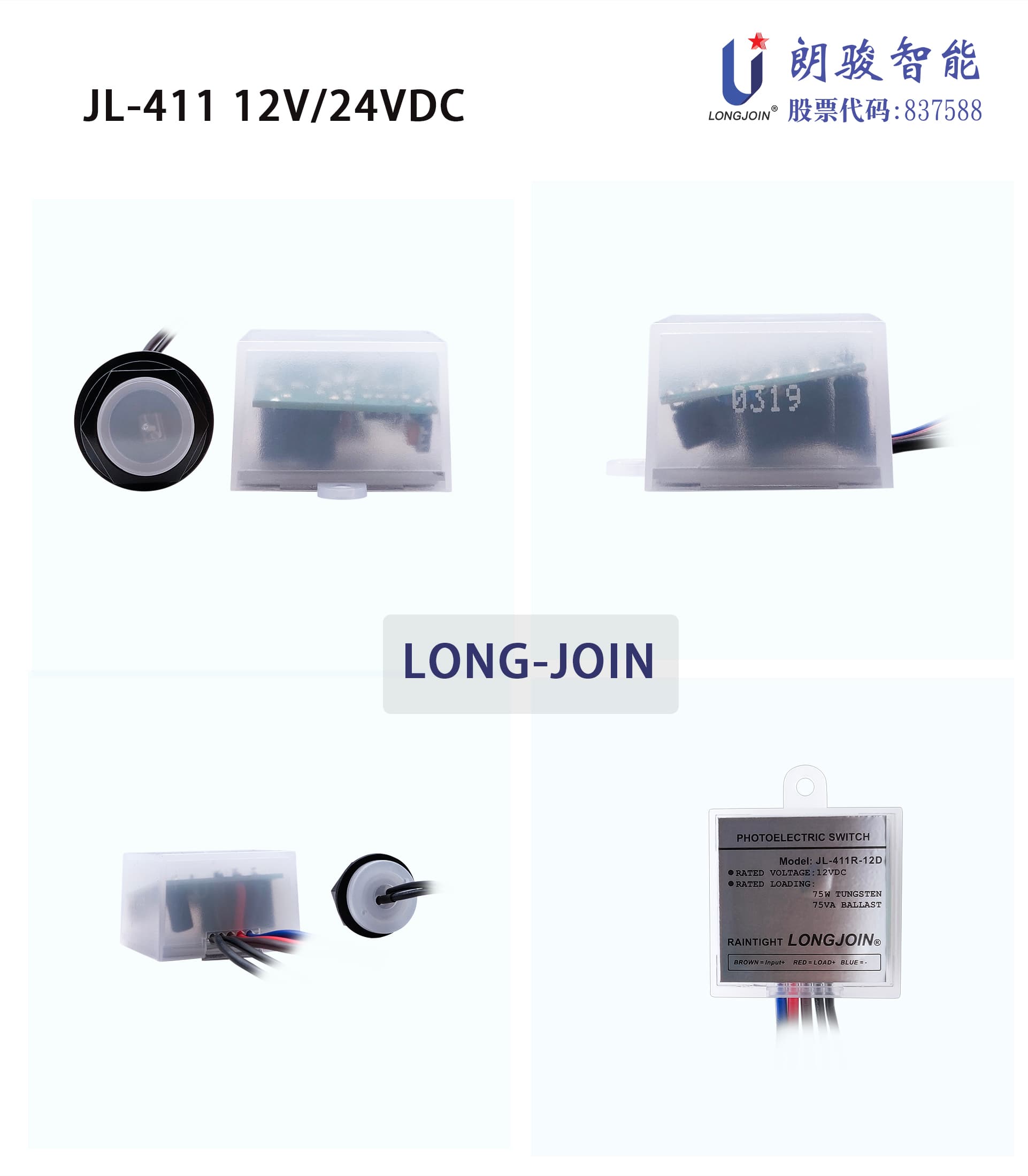

JL-411R 12-24VDC Time Delay Time 3-10s

Here have a electronic type controller , it is suit for available work voltage 12v, and 24V, and can wiring an piece led light fixture, and don’t maximum work power <75w. in a word, this light controller is appreciable ranges in 1 pieces led street light, and small type decoration light fixture.

Feature
1-Power consumption: 1.5W
2-3~10s Time-delay
3-low voltage light controller
4-this controller is assigned by integration and split type, note: R, whether this mark not this.

Number	JL-411(R)-12D	JL-411(R)-24D
Rated Voltage	12VDC	24VDC
Applicable Voltage Range	-
Rated Frequency	50/60Hz
Rated Loading	75W
Power Consumption	1W Max.
Operate Levels	5~15Lx Turn-On / 20~80Lx Turn-Off

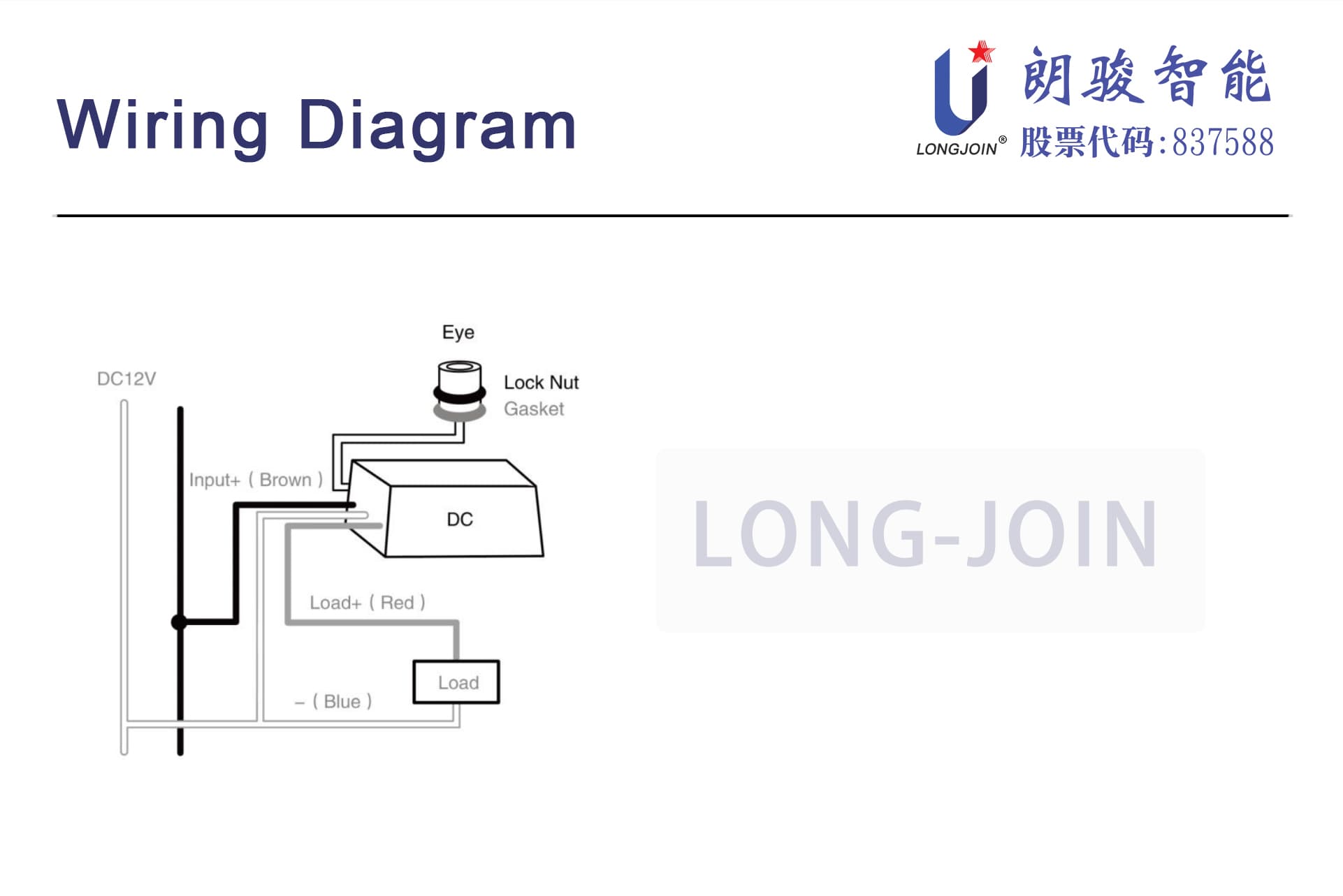

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

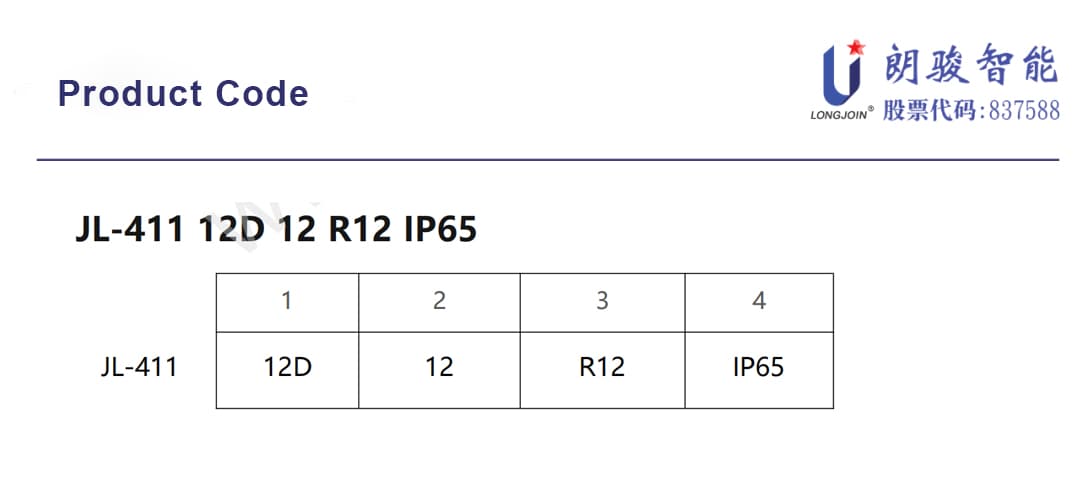

1: 12D=12VDC

24D=24VDC

2: lead length

12=12″

Customizable

3: Sensor Position

R=sensor separated

Null=sensor on body

12=12″sensor lead length
