JL-422 Series Electronic Light Controller Switch

It is commone feature aut on-off switch automatically dusk to dawn. in this case most important case, this JL-412 series light controller with setting lux value, which can adust different parameter via on on off lux vulue Δ+24±5 Lx by our technological master onece more again debug until get better answear. however, you can get beyong border in eye'views, these product passed ul cetificate and zero crossing figuration.

Number	JL-422C(R)
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	1.2A Tungsten / Ballast 1A e-Ballast
Power Consumption	1W max
On Levels	16 Lx（± 5）
Off Levels	Initial: 24 Lx（±5 *Once reflected light（△）is detected：Δ+24±5 Lx
Leads Length	AWG #18, AWM1430
Unique point	Zero crossing function
Certificate	UL/CE,RoHS

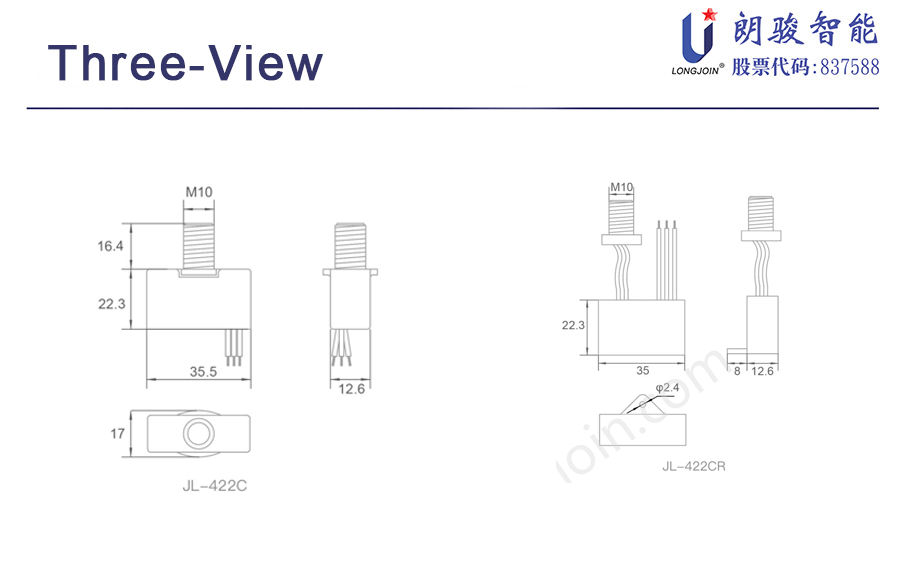

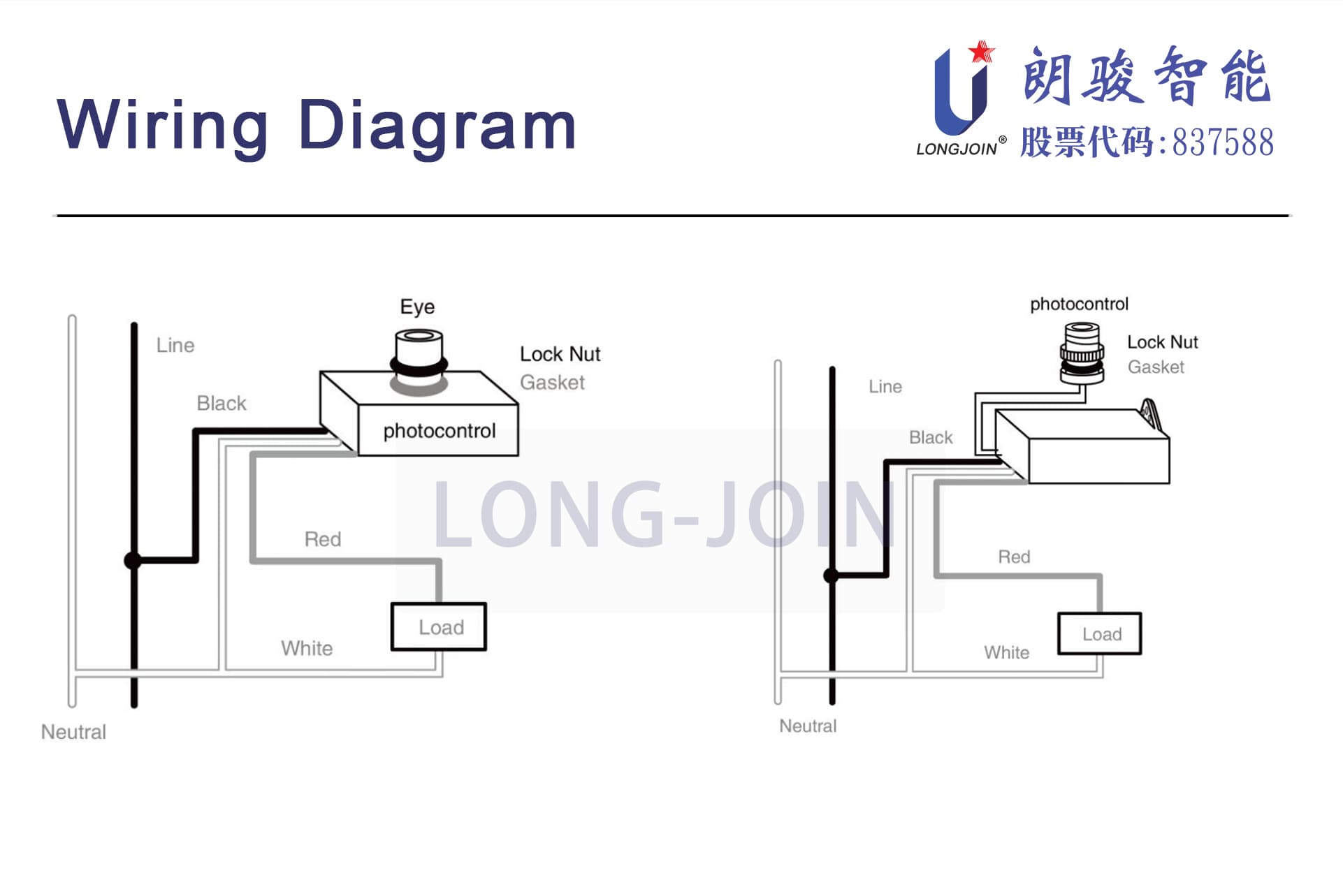

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

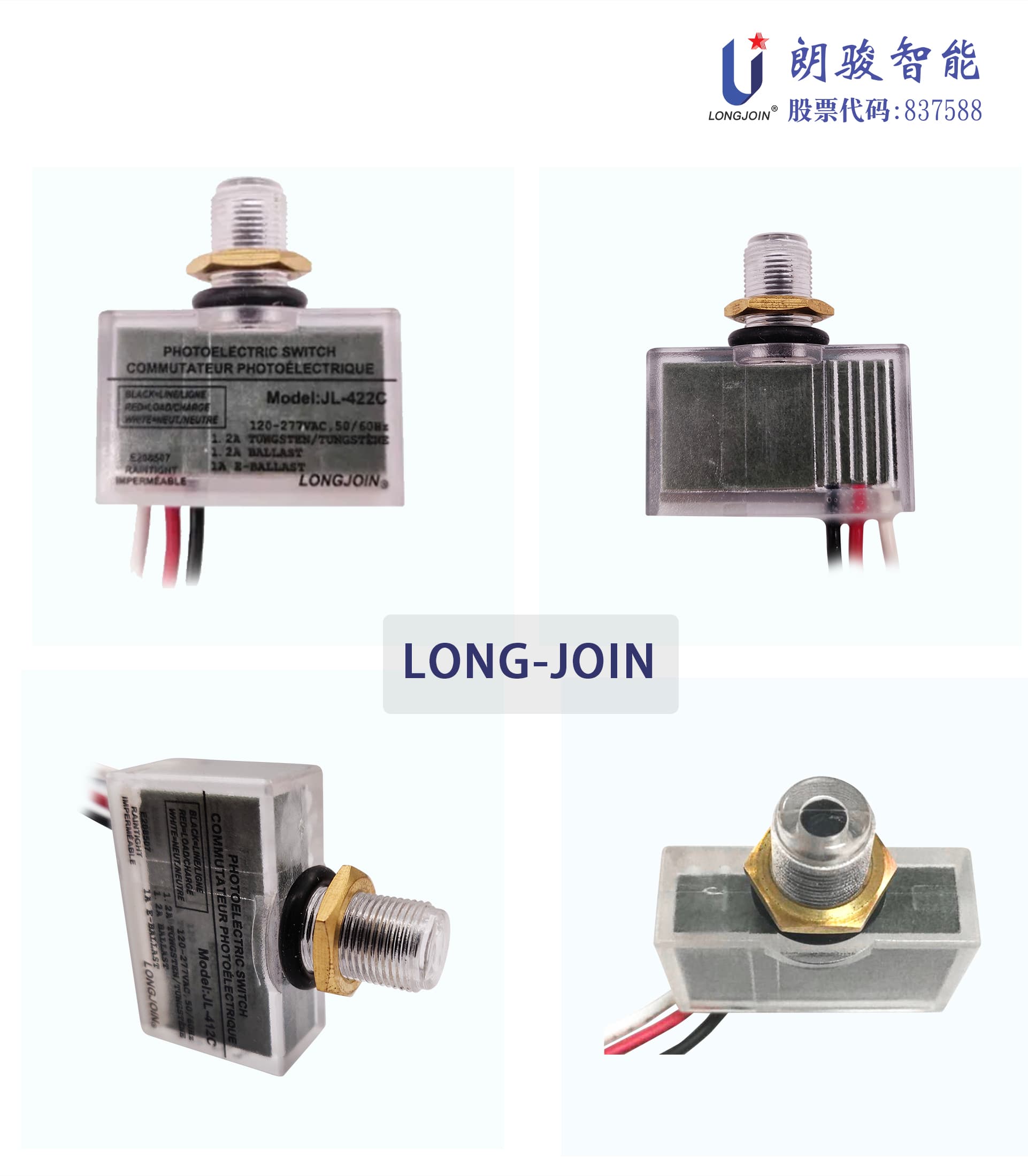

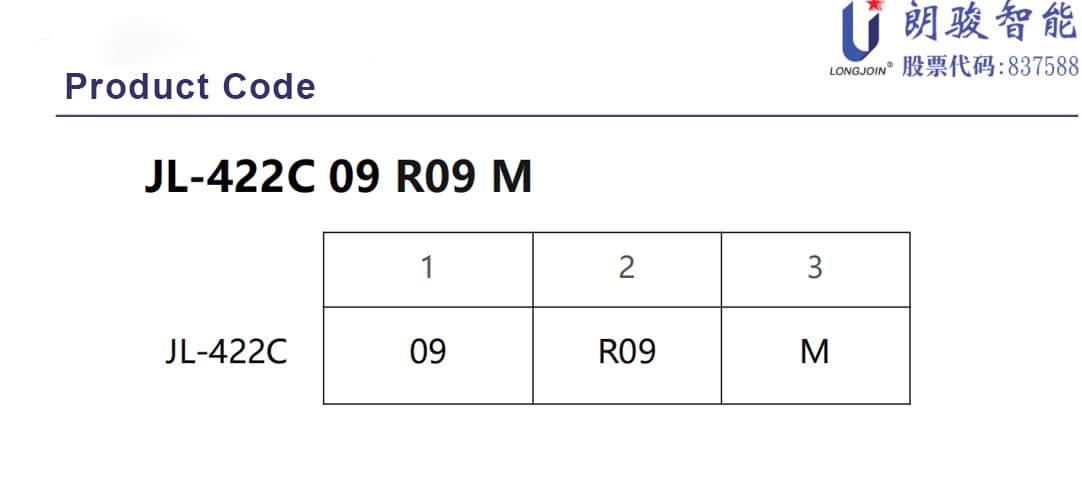

2: lead length

09=09″ (Customizable)

3: Sensor Position

R=sensor separated

Null=sensor on body

9=9″sensor lead length
