JL-412C/R Electronic Direct Wire-In Photocontrol

The photocontrol JL-412C(R) is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

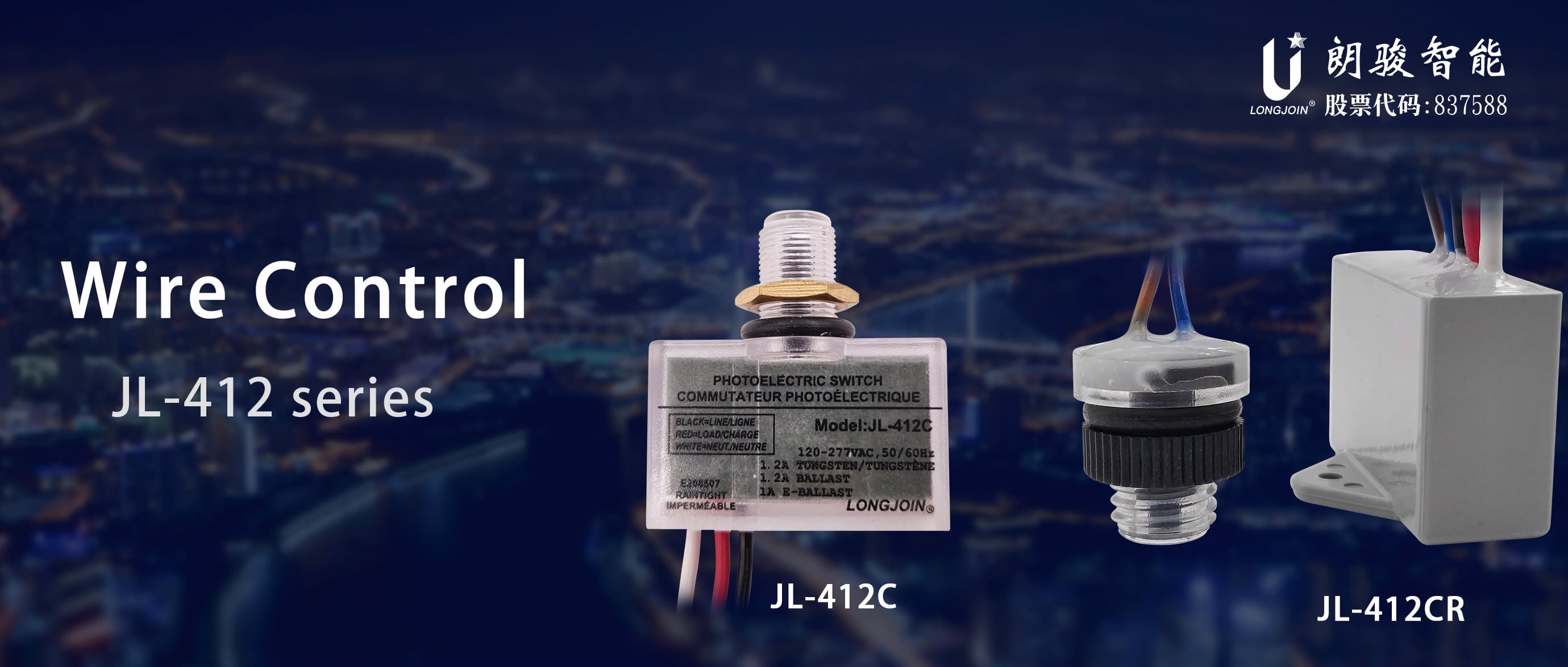

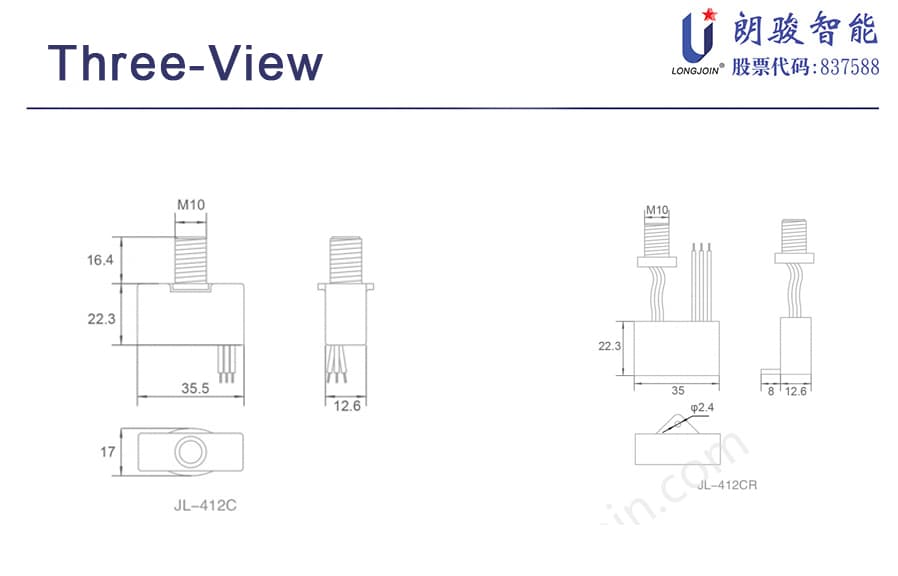

JL-412 series have 2 types of controller, such as JL-412C and JL-412CR

JL-412C, integration type sensing head.

JL-412CR, split type sensing head to connect controller body.

You can choose different light fixture application environment, and also pick good photo control type for here.

Number	JL-412C(R)
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	1.2A Tungsten / Ballast 1A e-Ballast
Power Consumption	1W max
Operate Levels	10~30Lx Turn-On / 30~80Lx Turn-Off
Leads Length	AWG #18, AWM1430
Certificate	UL/CE,RoHS

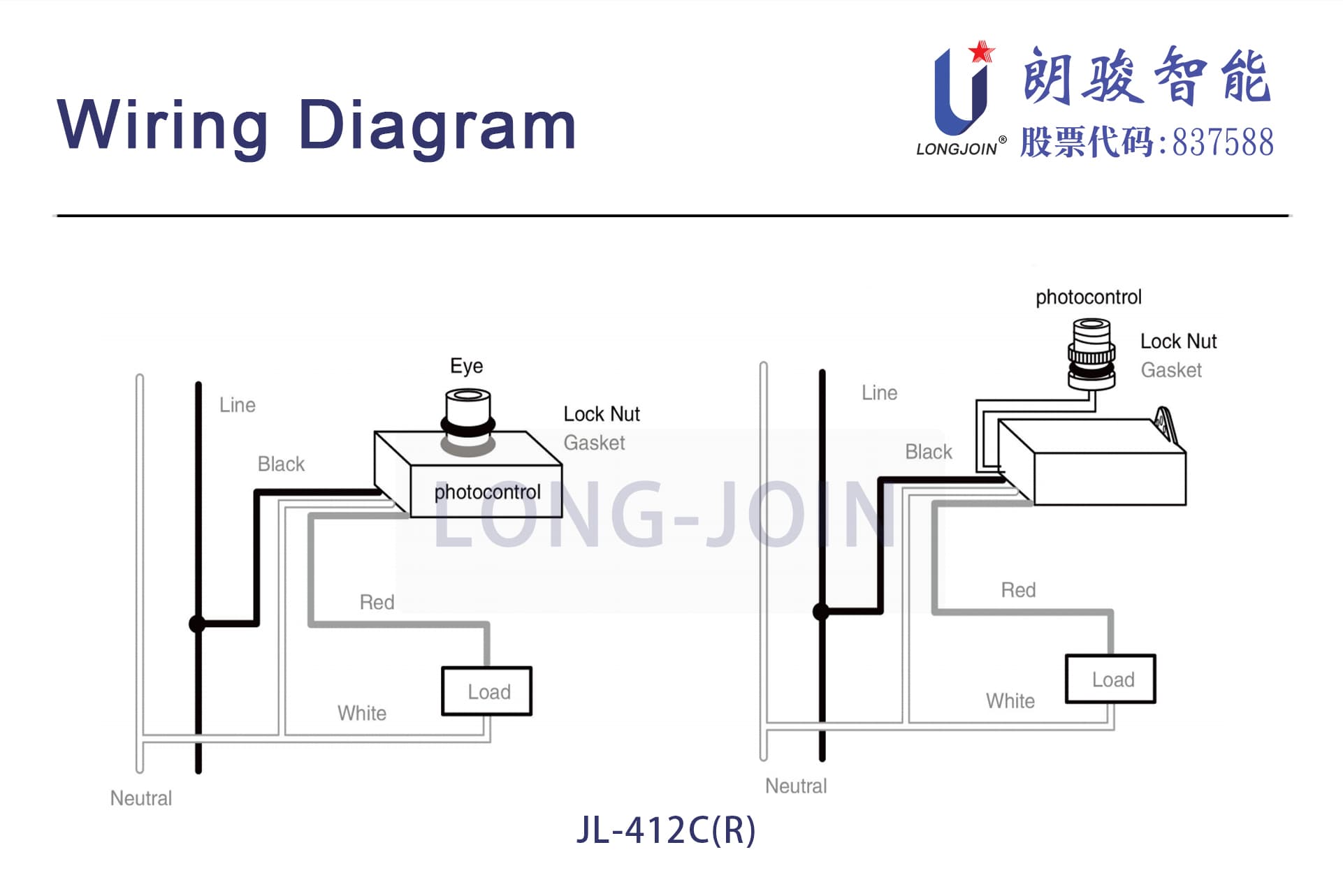

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

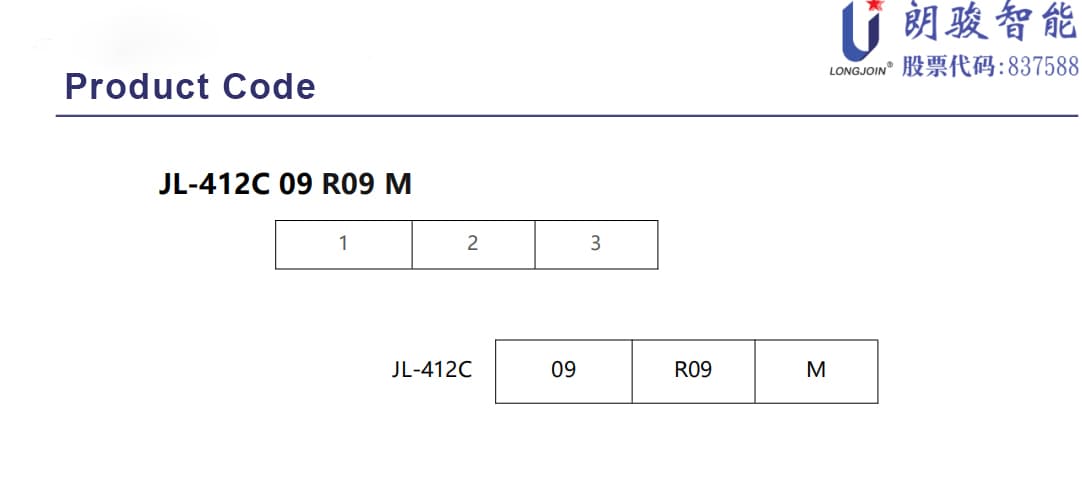

2: lead length

09=09″ (Customizable)

3: Sensor Position

R=sensor separated

Null=sensor on body

9=9″sensor lead length
