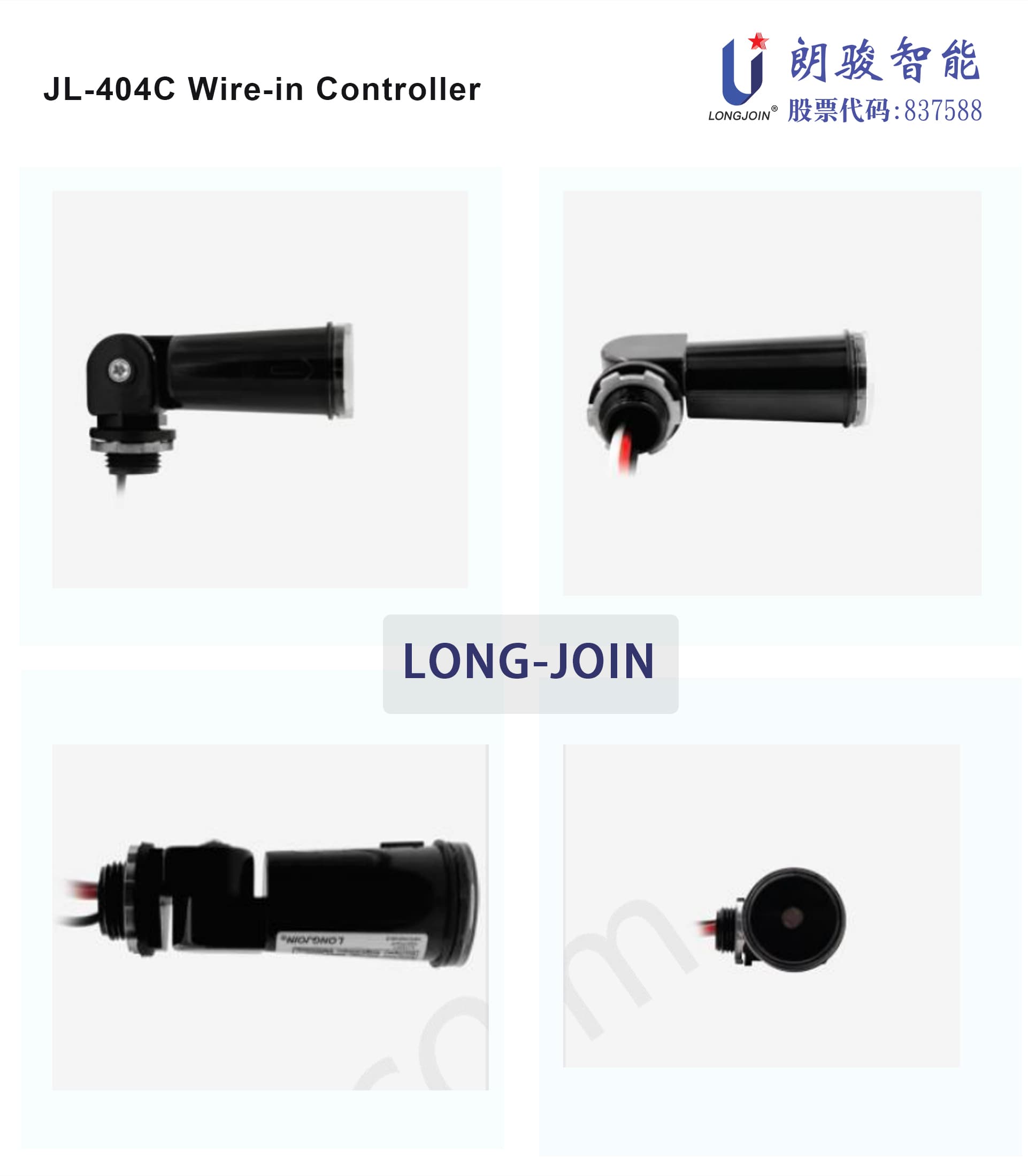

Stem Photocell Sensor with Swivel Parts JL-404C

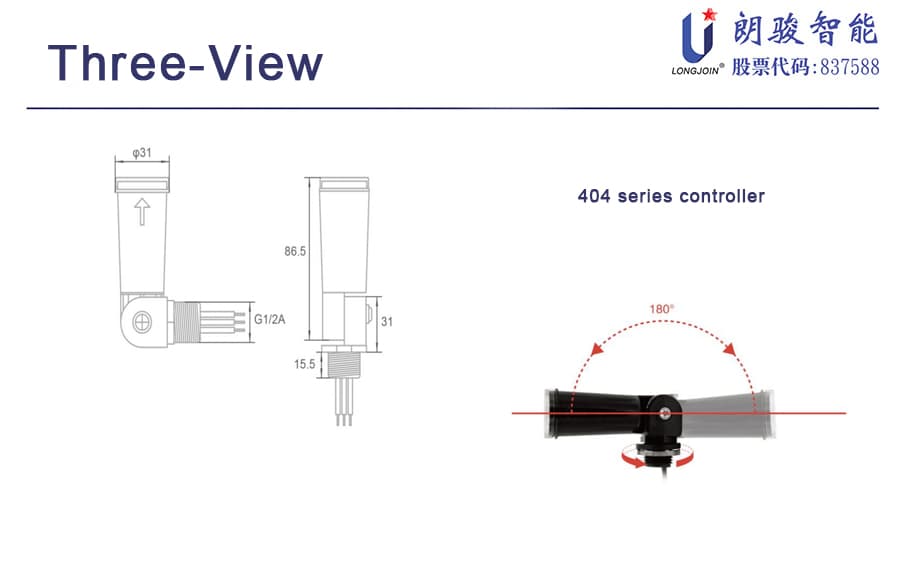

Swivel 120-277V stem photocell, and you directly adjust directional 180 horizontal on the level to facing sunlight where.

Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

this swivel stem photocell series: 104A, 403C, 403CM,and 403CMZ(cross-technical)

Number	JL-404C
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	40°C ~ +70°C
Wire Gauge	AWG #18,105℃
Certificate	UL, CE,RoHS

Code Mark

1: Lead Rating 18=18 AWG, 105ºC rated 18G=18 AWG 150 ºC rated

2: Lead Length XX, in inches (04 min.)

3: L = Closed Q = Notched

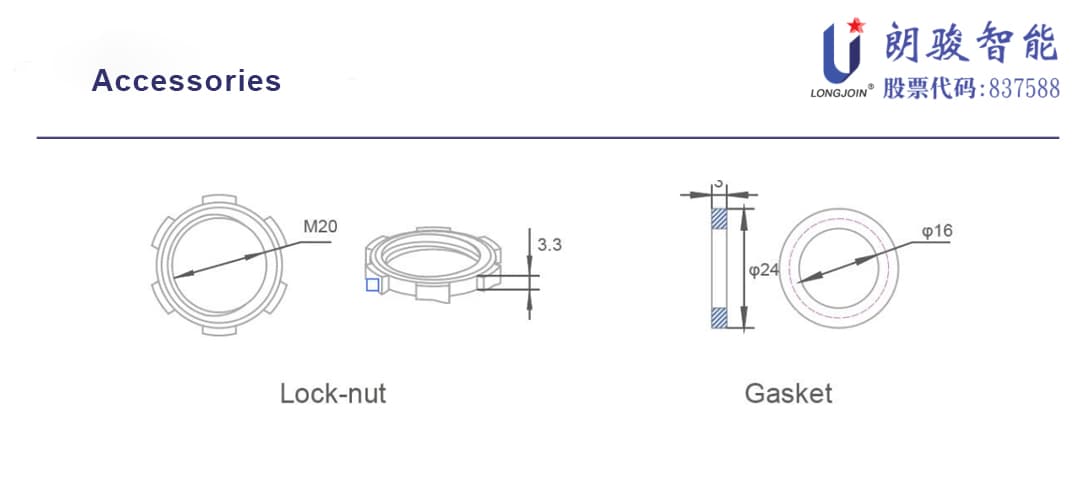

*Default configuration：zinc nut x1, rubber gasket x1
